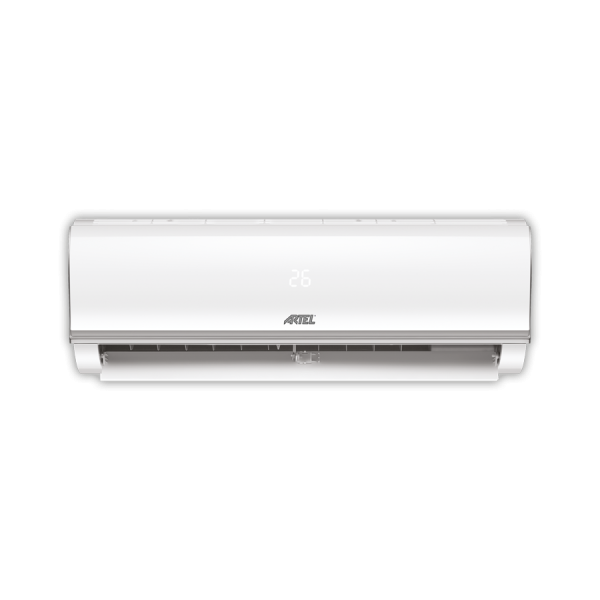

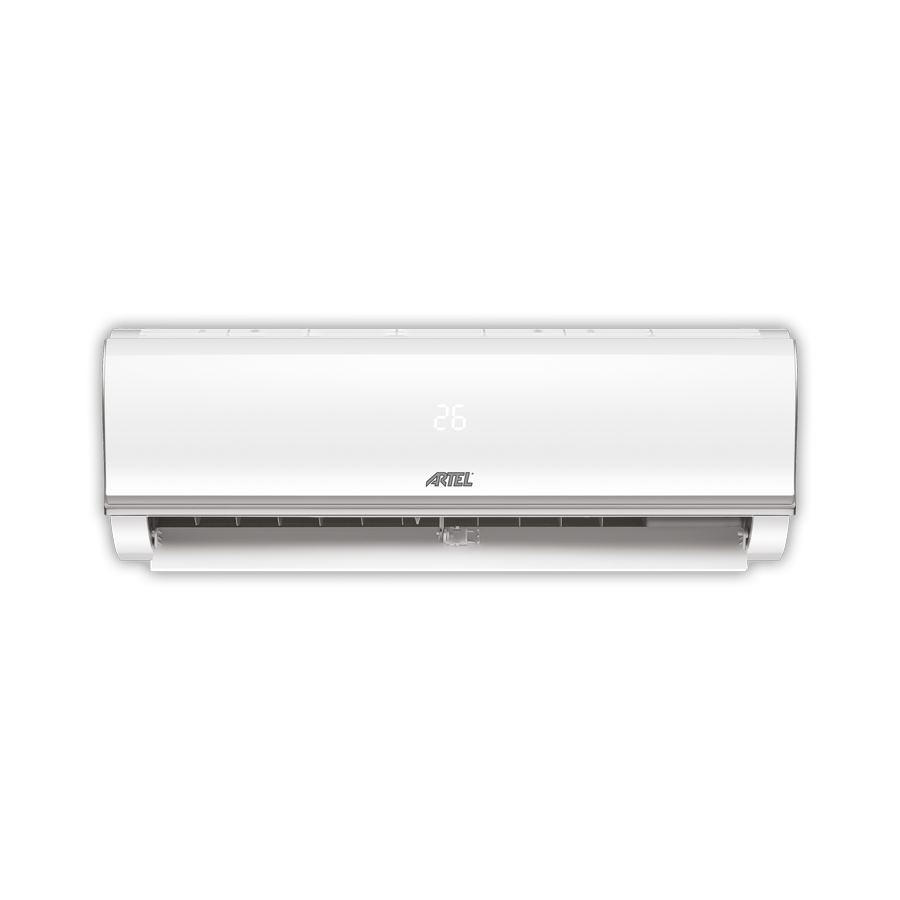

ARTEL 18,000 Btu

HOOP Line Model – R32 Refrigerant – Top Range

Description

AMX18RP24
Power Supply V-Ph-Hz 230 – 1 – 50
Rating Cooling Capacity W 5278 (1818 – 6129)
Rating Cooling Capacity BTU/h 18000 (6200 – 20900)
Cooling Power Input W 1539 (140 – 2360)
EER 3,43
SEER 7,1
Cooling Energy Efficiency Class A++
Rated Heating Capacity W 5571 (1378 – 6744)
Rated Heating Capacity BTU/h 19000 (4700 – 23000)
Heating Power Input W 1480 (200 – 2410)
COP 3,76
SCOP Warmer 5,2
Heating Energy Efficiency Class Warmer A+++
Max. Input Consumption W 2950
Cooling Current A 6,9 (0,6 – 10,3)
Heating Current A 6,4 )(0,9 – 10,5)
Max. Current A 10
Indoor Sound Pressure Level (Hi/Mi/Lo) dB(A) 44/37/30/25
Indoor Sound Power Level dB(A) 55,0
Outdoor Sound Pressure Level dB(A) 56,0
Outdoor Sound Power Level dB(A) 61,0
Indoor Air Flow (Hi/Mi/Lo) m³/h 840/680/540
Dimensions Indoor Unit (WxDxH) mm 957x213x302
Dimensions Outdoor Unit (WxDxH) mm 800x333x554
Indoor Unit Net/Gross Weight kg 10,0/13,0
Outdoor Unit Net/Gross Weight kg 34,0/36,7
Refrigerant Type – GWP R32 – 675
Refrigenrant Charged Quantity kg 1,0
Refrigerant Piping (Liquid Side/Gas Side) in (1/4 – 1/2)
Refrigerant Piping Length (Max) m 30
Max Difference Level Between Indoor and Outdoor Unit m 20
Compressor Type ROTARY
